PySide MainWindowのラッパークラス
PySideのQMainWindowでツールを作るさい、同じ記述を何回もするのがめんどうなので、共通で記述する部分をラッパークラスを作ってまとめてみる。
ライブラリ化
import os
import json
from logging import config, getLogger
from PySide2.QtCore import QFile
from PySide2.QtWidgets import (
QMainWindow,
QStatusBar
)
from PySide2.QtUiTools import QUiLoader
class EbMainWindow(QMainWindow):
def __init__(self, parent=None):
QMainWindow.__init__(self, parent)
def setupLogger(self, dir, config_file, logger_name):
config_path = os.path.join(dir, config_file)
with open(config_path, 'r') as f:
log_conf = json.load(f)
log_conf['handlers']['fileHandler']['filename'] = os.path.join(dir, log_conf['handlers']['fileHandler']['filename'])
config.dictConfig(log_conf)
self.logger = getLogger(logger_name)
self.logger.debug(config_path)
def loadUI(self, dir, file_name):
# Load ui file
loader = QUiLoader()
ui_file_path = os.path.join(dir, file_name)
ui_file = QFile(ui_file_path)
ui_file.open(QFile.ReadOnly)
self.ui = loader.load(ui_file, self)
ui_file.close()
def initUI(self, status_bar):
# Set Window Title
title = self.ui.windowTitle()
self.setWindowTitle(title)
# Set Window Size
w = self.ui.size().width()
h = self.ui.size().height()
self.resize(w, h)
if status_bar == True:
self.__enableStatusBar()
def __enableStatusBar(self):
# Set Status Bar
# Instance Variable
self.statusbar = self.ui.findChild(QStatusBar, 'statusbar')
self.setStatusBar(self.statusbar)
def showMessage(self, message):
self.statusbar.showMessage(message)
共通に出来そうな部分は、ロガーの設定、UIファイルの読み込み、MainWindowで共通なタイトル、サイズ、ステータスバー。
とりあえず、今回思いつくのはこの辺だったので、他に共通化できそうならバージョンアップしていきたい。
ロガーについてはWebにいろいろあるので、ここでは説明しない。
■追加
# menuのparamを追加
def initUI(self, menu_bar:bool, status_bar:bool):
# 上記に以下を追加
if menu_bar == True:
self.__enableMenuBar()
def __enableMenuBar(self):
menubar = self.ui.findChild(QMenuBar, 'menubar')
self.setMenuBar(menubar)
def addMenuAction(self, menu_name:str, action:QAction):
menu = self.menuBar().findChild(QMenu, menu_name)
menu.addAction(action)
self.menuBar().addMenu(menu)
前回のラッパーに、メニューの項目を追加。
継承側では以下の記述でメニューを登録できている。
※階層メニューは検証が必要
# Set MenuBar
ui_action = self.ui.findChild(QAction, 'action_manual')
manual_action = QAction(ui_action.text(), self)
manual_action.setObjectName(ui_action.objectName())
manual_action.triggered.connect(self.showManual)
self.addMenuAction('menu_help', manual_action)
フォルダ階層
とりあえずは図のような感じ。
libフォルダの下に、パッケージとしてeastbosk.uiのフォルダがある。
logフォルダはロガーで出力するログファイルの場所。
uiフォルダはQt Designerで作成したuiファイルの場所。
pysideフォルダ直下にpyファイルがあるので、それはsrcフォルダを作った方がいいかもと考えてる。
後は、設定ファイル類はconfフォルダとか・・まだ改良は必要。
テンプレート

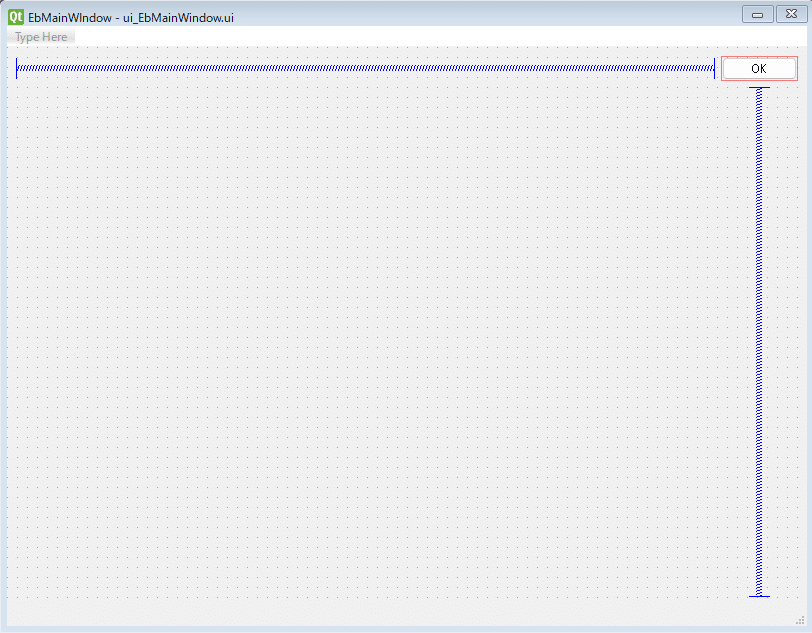

Qt Designerで図のようなUIを作成。
import sys
import os
import qtmax
from PySide2 import *
from PySide2.QtWidgets import *
eb_path = os.path.join(os.path.dirname(os.path.realpath(__file__)), '.\\lib')
sys.path.append(eb_path)
from eastbosk.ui.EbPySideLibs import EbMainWindow
class EbWindow(EbMainWindow):
def __init__(self):
super().__init__(qtmax.GetQMaxMainWindow())
# 実行ディレクトリ取得
self.cur_dir = os.path.dirname(os.path.realpath(__file__))
# ロガーの設定
self.setupLogger(self.cur_dir, "log_config.json", "debugLogger")
# PySideのUIファイルを読み込み
self.loadUI(self.cur_dir, ".\\ui\\ui_EbMainWindow.ui")
# UIの初期設定、TrueでStatusBarが有効になる。
self.initUI(True)
# 個別UIの設定
self.__setupUI()
# ここのプライベート関数で、それぞれ個別のUI設定をする。
def __setupUI(self):
widget = self.ui.centralWidget()
h_lo = self.ui.findChild(QHBoxLayout, 'h_lo')
ok_btn = self.ui.findChild(QPushButton, 'ok_btn')
ok_btn.clicked.connect(self.okClicked)
h_lo.addWidget(ok_btn)
widget.setLayout(h_lo)
self.setCentralWidget(widget)
self.logger.debug("Setup UI")
def okClicked(self):
self.showMessage("OK")
def main():
window = EbWindow()
window.show()
if __name__ == '__main__':
main()
このコードがテンプレートになるので、新たにツールを作成する場合は、このコードをコピーして使用する感じになる。
相対パス関連は適宜変更する。
QDialogも後で作るかも。
とりあえず、今後のツールはこれで作成していくと思う・・
